Description

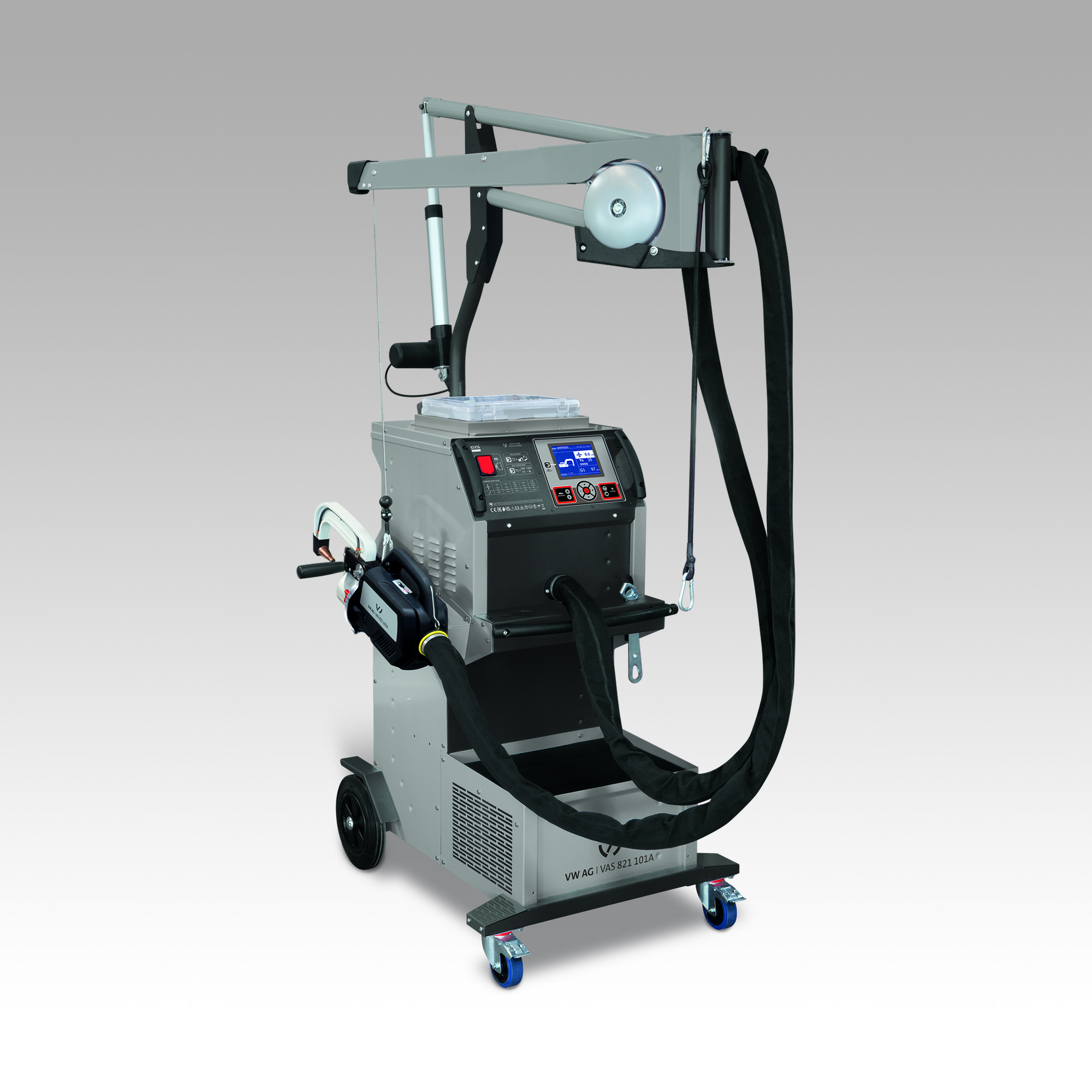

Processor-controlled multifunctional resistance welder with transformer G-clamp is suitable for all repair spot welds permitted on today’s variety of steel panels. It has a maximum electrode contact pressure of 550 daN at 8 bar and a welding power of up to 14,500 amperes. Disturbance factors such as paint residues, hollow positions, etc. are detected automatically and controlled adaptively wherever possible. If control tolerances are exceeded, a plain-text message appears on the device display. Full process monitoring and automatic control of pressure, welding current or welding temperature is possible using software. Energy guarantees consistently high quality welds.
Advantages:
- Lightweight: 11.3 kg with G1 clamp
- Automatic over-opening of 80 mm (20 mm at rest)
- Manual over-opening of arm for access to difficult areas (200 mm clearance)
- Brass clamp holder and arm base for optimum electrical contact (easier maintenance)
- Quick, tool-free arm change thanks to double-action lever
- Automatic cooling liquid connectors
- Remote controls on clamp (over-opening, welding, setting confirmation)
- Ball-bearing-mounted gyroscopic sensor integrated on the clamp
- Maximum productivity (18 points/min)

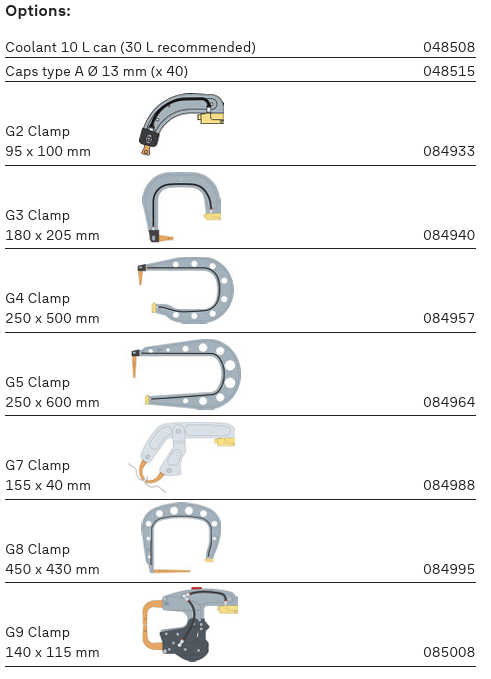

- G9 arm (optional) with automatic mode
Performance :
- Welding power:
- 14,500 A maximum
- Constant current monitoring
- Acoustic message if the tolerance value is exceeded
- Low current consumption
- Electrode application pressure:
- Automatic adjustment of contact pressure
- Maximum electrode force: 550 daN at 8 bar
- Liquid-cooled transformer, rectifiers, electrodes and closing parts
Adjustable boom:
-
- Reach from power source 120 cm
- Motorised boom to adjust working height
- Offset balancer for from working area
- Rubber protection at the end of the moving parts
Scope of delivery:
- Liquid-cooled resistance welder with:
- Transformer G clamp and 6 m clamp cable
- Standard G1 arm 190 x 97 mm
- 360° gyroscope with ball bearings
- Motorised balancing system to adapt working height
- Cable holder
- Spring balancer
- 360° orbital clamp guide
- Box of consumables with 6 type A electrode caps Ø 13 mm
Parameter memory:
- SD card interface for saving welding parameters
- Software for transferring reports to PC (SPOT SAVE)
